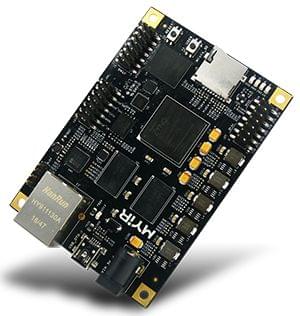

The Z-turn Lite is an ultra-cost-effective lite version of MYIR’s Z-turn board. It is built around 667MHz Xilinx Zynq-7007S SoC which is among the new Zynq Z-7000S family with a Single-core ARM Cortex-A9 processor and integrated Artix-7 Field Programmable Gate Array (FPGA) logic.  The Zynq-7010 Dual-core ARM Cortex-A9 MPCore processor can also be compatible to be used on this board. It is a minimal and compact system of Xilinx Z-7007S or Z-7010 SoC and provides numerous pending configuration of PL resources. It is an excellent reference design and evaluation board for development based on Xilinx Zynq-7000 series SoCs.

Z-turn Lite Kit, MYS-7Z007S-C-S module with Xilinx Zynq XC7Z007S-1CLG400C, Ethernet cable, Micro USB2.0 cable, USB-to-UART cable, one 4GB TF card, one 5V/2A Power adapter.The Z-turn Lite takes full features of the Zynq Z-7007S or Z-7010 all programmable SoC.  It is equipped with 512MB DDR3, 4GB eMMC Flash, 16MB QSPI Flash and a set of peripherals including Micro USB OTG, 10/100/1000Mbps Ethernet, TF, JTAG, Debug UART, etc. Additionally, there is one 120 position connector socket on the rear of the board to bring out as many as IO signals for user extensions.
