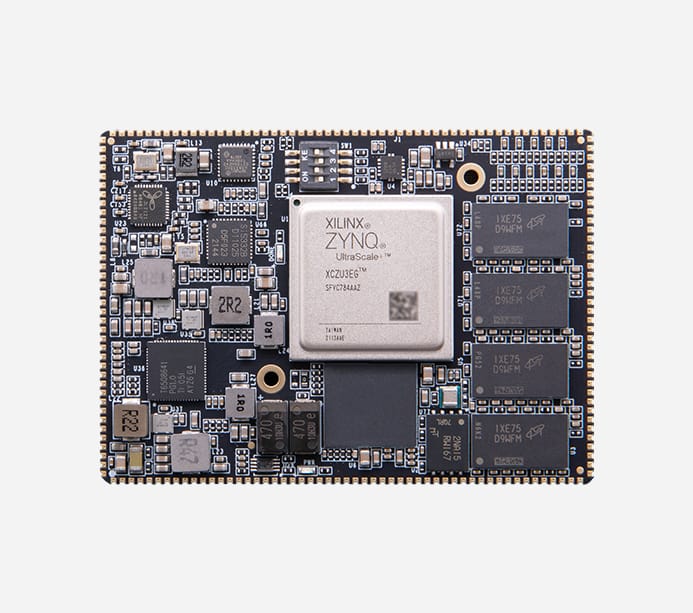

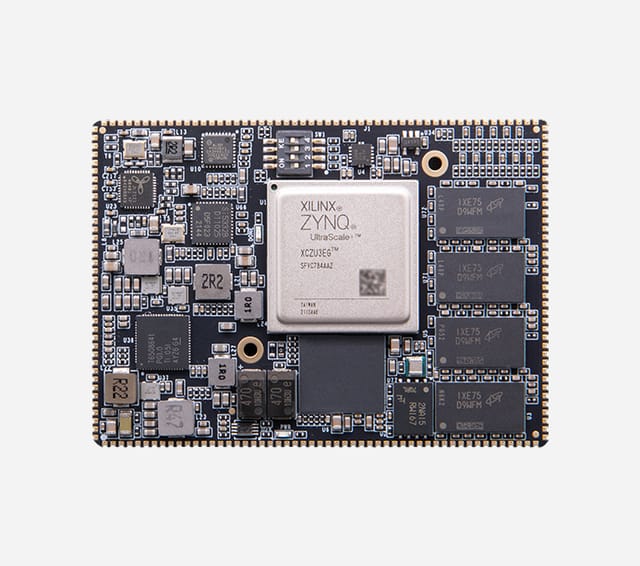

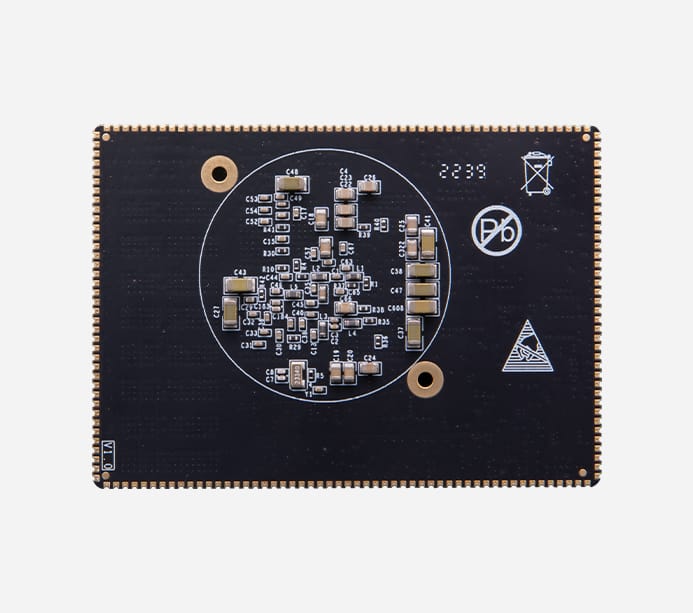

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board XCZU3EG
- Lead time is 3-4 weeks
Description of product
4× ARM Cortex™-A53, 2× ARM Cortex™-R5
Mali-400 MP2 GPU and 16nm FinFET+programmable logic combine to encode and decode 4K x 2K (60fps) video, which is an ideal choice for multimedia, automotive ADAS, monitoring, AI intelligence, cloud computing, high-speed data exchange and storage, and other embedded visual applications
Main Parameters
Core board-M3EG
FPGA Chip-XCZU3EG-1SFVC784
Speed Grades- -1
Working Temperature-Industrial Grade, -40°C~85°C
CPU kernel-4x ARM Cortex™-A53; 2x ARM Cortex™-R5
CPU frequency-1.2GHz; 500MHz
GPU Graphic processing sheet-Mali™-400 MP2
High speed connection interface-PCIe Gen2 x1, 1x USB3.0, Sata 3.1, DisplayPort, 1x Tri-mode Gigabit Ethernet
Common connection interface-1x SD2.0, 1x JTAG
PS DDR4-4GB, 64bit
QSPI | EMMC Flash-32MB | 8GB
Logic Cells-154K
Flip-Flops-141K
LUTs-71K
Max. Distributed RAM-1.8Mb
Total Block RAM-7.6Mb
Clock Management Tiles (CMTs)-3
DSP Slices-360
PS MI/Os-15
PL I/Os-102
PL HP I/Os-96
PL HD I/Os-6
Connection mode-Stamp hole

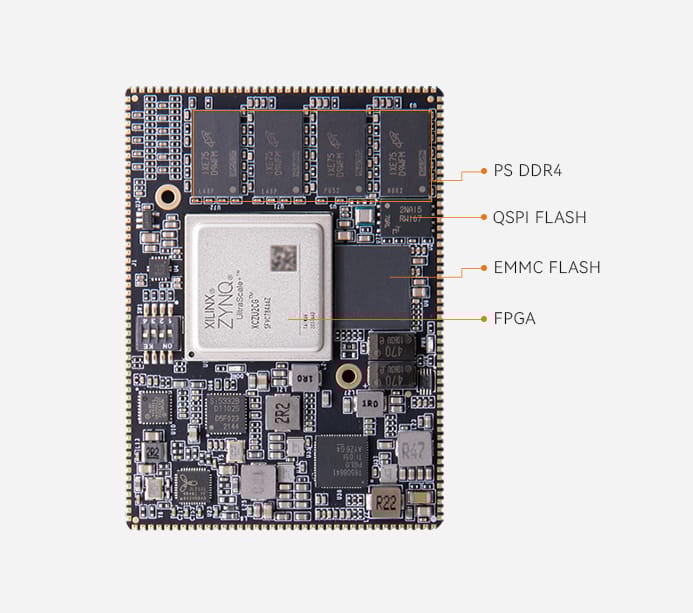

Functions and interfaces
RAM-4GB DDR4, 64bit
QSPI Flash-One piece of 256Mbit QSPI flash, which can be used as FPGA user data storage
EMMC Flash-8GB, used in zynq system, can be used as a large capacity storage device of the system
Crystal oscillator-One passive crystal oscillator is provided to PS system
Power Supply Parameters
Voltage Input- +12V DC
Package List
FPGA SoM Board-1
Structure Size
Size Dimension-70mm x 50mm
Number of Layers-16-Layer PCB
