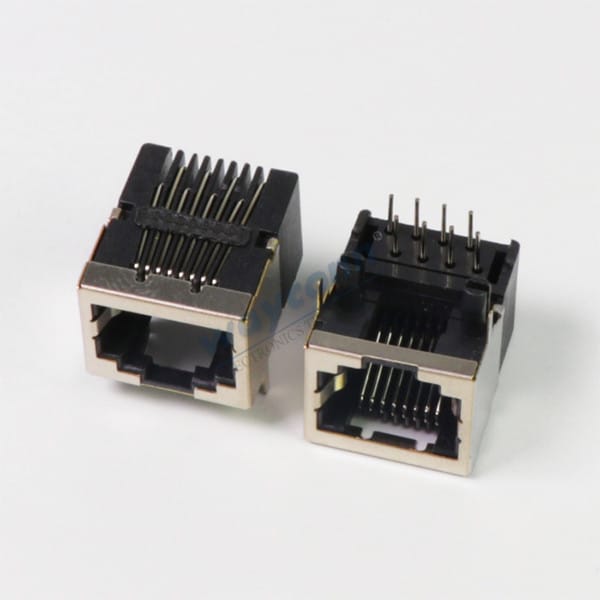

RJ45 Jack [FeMale] Ethernet Port - Networking Ethernet (LED)

RJ45 Jack are used for standard networking cable. Suitable for making custom length networking cable.

Description

• 10/100/1000Base-Tx RJ45 single port 1X1  Side Entry (Right Angle) with LED
• Single port 1X1 Tab-Down RJ45 with internal magnetics
• Internal magnetics are 100% electrically tested for HI-POT and functionality
• Suitable for CAT5 & 6 fast Ethernet Cable or better UTP
• 350uHminimum OCL with 8mA bias current
• High performance for maximum EMI suppression
• Minimum 1500Vrms isolation per IEEE 802.3 requirement
• ROHS-6 peak wave solder temperature rating 260℃
• Operating temperarure range :0℃ to +70℃
• Storage temperature range :-40℃ to +85℃
• Number of positions:10
• Number of contacts loaded:8
• Shieded:YES
• Rohs compliant
• Length:21.3mm
• LEDS:Yes
• EMI finger:NO

Applications

• Integrated RJ45 connector main used to :
  10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,
  optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,
  telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
