5b98c8fe8e262e11ddaa2dfe MYB-6ULX Expansion Board https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b98c8fe8e262e11ddaa2dfe/images/5b98c8fe8e262e11ddaa2dff/5b98c8ae8e262e11ddaa2c5c/5b98c8ae8e262e11ddaa2c5c.jpg

Description

MYB-6ULX Expansion Board | IO Expansion Board for MYS-6ULX-Welcome to MYIR

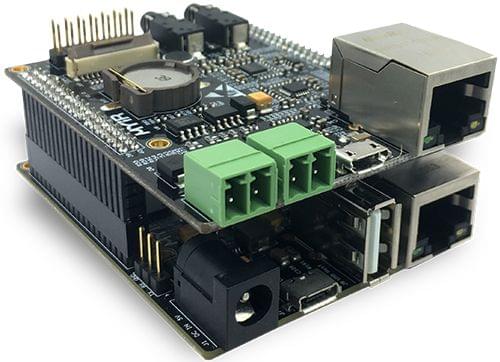

MYB-6ULX Expansion Board


The MYB-6ULX Expansion Board is designed specially for MYIR's MYS-6ULX which is a highly-integrated Single Board Computer based on NXP's i.MX 6UltraLite / 6ULL ARM Cortex-A7 processor. It is connected to the MYS-6ULX board through two 2.0mm pitch 2 x 20-pin expansion female header connectors. The MYB-6ULX expansion board has extended one more Ethernet for MYS-6ULX and also added CAN, RS485, Audio, RTC and Camera functions which has further enhanced the performance of MYS-6ULX board.


Specification

MYB-6ULX

Expansion Board

70mm x 55mm, 4-layer PCB, 5V/1A USB Power Supply

Supports -40°C~85°C Working Temperature

1 x 10/100Mbps

1 x CAN

1 x RS485

1 x Micro USB Debug port

1 x Microphone, 1 x Headphone, 1 x Line In

1 x Camera Interface (30-pin FPC connector)

1 x RTC Battery Socket

1 x IO Expansion Header (2.0mm pitch 2 x 7-pin headers)

2 x 2.0mm pitch 2 x 20-pin female Header Connectors (connect with MYS-6ULX)




TT-MT-022
in stockINR 3855.06
ARM
1 1
MYB-6ULX Expansion Board

MYB-6ULX Expansion Board

Sku: TT-MT-022
₹3,855.06


Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b98c8fe8e262e11ddaa2dfe/images/5b98c8fe8e262e11ddaa2dff/5b98c8ae8e262e11ddaa2c5c/5b98c8ae8e262e11ddaa2c5c.jpg

Description of product

Description

MYB-6ULX Expansion Board | IO Expansion Board for MYS-6ULX-Welcome to MYIR



MYB-6ULX Expansion Board


The MYB-6ULX Expansion Board is designed specially for MYIR's MYS-6ULX which is a highly-integrated Single Board Computer based on NXP's i.MX 6UltraLite / 6ULL ARM Cortex-A7 processor. It is connected to the MYS-6ULX board through two 2.0mm pitch 2 x 20-pin expansion female header connectors. The MYB-6ULX expansion board has extended one more Ethernet for MYS-6ULX and also added CAN, RS485, Audio, RTC and Camera functions which has further enhanced the performance of MYS-6ULX board.


Specification

MYB-6ULX

Expansion Board

70mm x 55mm, 4-layer PCB, 5V/1A USB Power Supply

Supports -40°C~85°C Working Temperature

1 x 10/100Mbps

1 x CAN

1 x RS485

1 x Micro USB Debug port

1 x Microphone, 1 x Headphone, 1 x Line In

1 x Camera Interface (30-pin FPC connector)

1 x RTC Battery Socket

1 x IO Expansion Header (2.0mm pitch 2 x 7-pin headers)

2 x 2.0mm pitch 2 x 20-pin female Header Connectors (connect with MYS-6ULX)
