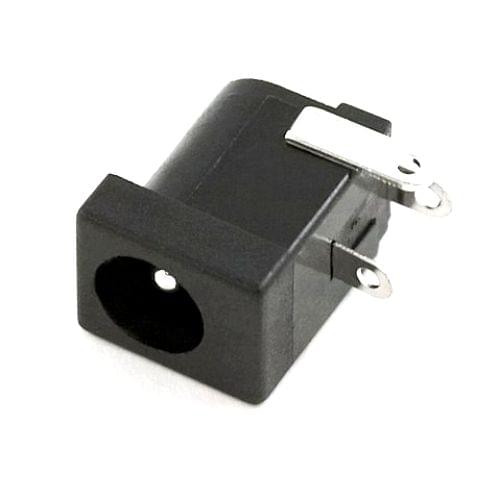

DC Power Jack Female Socket (PCB Mounting)
https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5e05df8fd98314025d0794fd/images/5e05df8fd98314025d079500/5e05df82e2693002be5089db/5e05df82e2693002be5089db.jpg
Description
DC power jack/connector. This is a common barrel-type power jack for DC power. These are compatible with our DC wall supplies and have a 5.5mm jack, with a 2.1mm center pole diameter.
This DC Power PCB Mounting Socket is the same one that is used in your Arduino Uno Board. So if you want to reduce all power wiring on your PCB then provide this power socket mounting option on your PCB.
Specification of DC Socket
- Conditions of Use: Operating temperature range: -40-55°C
- Rated Load: DC 30V 0.5A
- Contact resistance: ≤0.03 Ω
- Insulation resistance: ≥100MΩ DC 250V
- Withstand Voltage: AC 500V (50Hz) / min
- Insertion force :3-20N
- Life: 5000 times
- Size: 2.1X5.5mm
in stock
INR
15.34
GENERIC
1
1
Email ID already exists!
Your Current password is incorrect
Password Updated Successfully
Thanks for your Feedback
- Home
- STUDENT PROJECT COMPONENTS
- DC Power Jack Female Socket (PCB Mounting)
DC Power Jack Female Socket (PCB Mounting)
Sku:
TT-DTK-1387
₹15.34
SIZE GUIDE
Sold By:
tenettech
Features
- Shipping in 10-12 Working days
- http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5e05df8fd98314025d0794fd/images/5e05df8fd98314025d0794fe/5e05df54c4ad54511808bbb3/5e05df54c4ad54511808bbb3.jpg
Description of product
Description
DC power jack/connector. This is a common barrel-type power jack for DC power. These are compatible with our DC wall supplies and have a 5.5mm jack, with a 2.1mm center pole diameter.
This DC Power PCB Mounting Socket is the same one that is used in your Arduino Uno Board. So if you want to reduce all power wiring on your PCB then provide this power socket mounting option on your PCB.
Specification of DC Socket
- Conditions of Use: Operating temperature range: -40-55°C
- Rated Load: DC 30V 0.5A
- Contact resistance: ≤0.03 Ω
- Insulation resistance: ≥100MΩ DC 250V
- Withstand Voltage: AC 500V (50Hz) / min
- Insertion force :3-20N
- Life: 5000 times
- Size: 2.1X5.5mm
