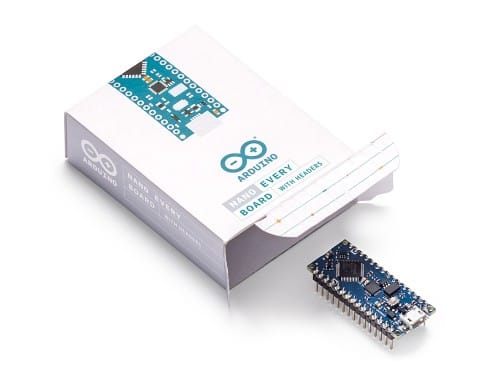

5f6af146dc8f9f6f5ce54725 ARDUINO NANO EVERY WITH HEADERS https://www.componentstores.com/s/59c9e4669bd3e7c70c5f5e6c/5f6af07ef4b020839c49afd1/abx00033_unbox.jpg

The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm! The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a large project.

The Arduino Nano Every is an evolution of the traditional Arduino Nano board but features a lot more powerful processor, the ATMega4809. This will allow you to make larger programs than with the Arduino Uno (it has 50% more program memory), and with a lot more variables (the RAM is 200% bigger).

The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm!

The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a large project.

Microcontroller ATMega4809 (datasheet)
Operating Voltage 5V
VIN min-MAX 7-21V
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Clock Speed 20MHz
CPU Flash Memory 48KB (ATMega4809)
SRAM 6KB (ATMega4809)
EEPROM 256byte (ATMega4809)
PWM Pins 5 (D3, D5, D6, D9, D10)
UART 1
SPI 1
I2C 1
Analog Input Pins 8 (ADC 10 bit)
Analog Output Pins Only through PWM (no DAC)
External Interrupts all digital pins
LED_BUILTIN 13
USB Uses the ATSAMD11D14A (datasheet)
Length 45 mm
Width 18 mm
Weight 5 gr (with headers)
TT-EL-3404691
in stock INR 1780.62
Arduino
1 1

ARDUINO NANO EVERY WITH HEADERS

Sku: TT-EL-3404691
₹1,780.62


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm! The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a large project.

The Arduino Nano Every is an evolution of the traditional Arduino Nano board but features a lot more powerful processor, the ATMega4809. This will allow you to make larger programs than with the Arduino Uno (it has 50% more program memory), and with a lot more variables (the RAM is 200% bigger).

The Nano Every is Arduino’s 5V compatible board in the smallest available form factor: 45x18mm!

The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The small footprint and low price, make the Nano Every particularly suited for wearable inventions, low-cost robotics, electronic musical instruments, and general use to control smaller parts of a large project.

Microcontroller ATMega4809 (datasheet)
Operating Voltage 5V
VIN min-MAX 7-21V
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Clock Speed 20MHz
CPU Flash Memory 48KB (ATMega4809)
SRAM 6KB (ATMega4809)
EEPROM 256byte (ATMega4809)
PWM Pins 5 (D3, D5, D6, D9, D10)
UART 1
SPI 1
I2C 1
Analog Input Pins 8 (ADC 10 bit)
Analog Output Pins Only through PWM (no DAC)
External Interrupts all digital pins
LED_BUILTIN 13
USB Uses the ATSAMD11D14A (datasheet)
Length 45 mm
Width 18 mm
Weight 5 gr (with headers)
