Analog Devices Inc./Maxim Integrated 505-PD20-1-1210-ND
Sku: TT-DKEY-505-PD20-1-1210-ND
₹24,423.84
Features
- Shipping in 10-12 Working Days
Description of product

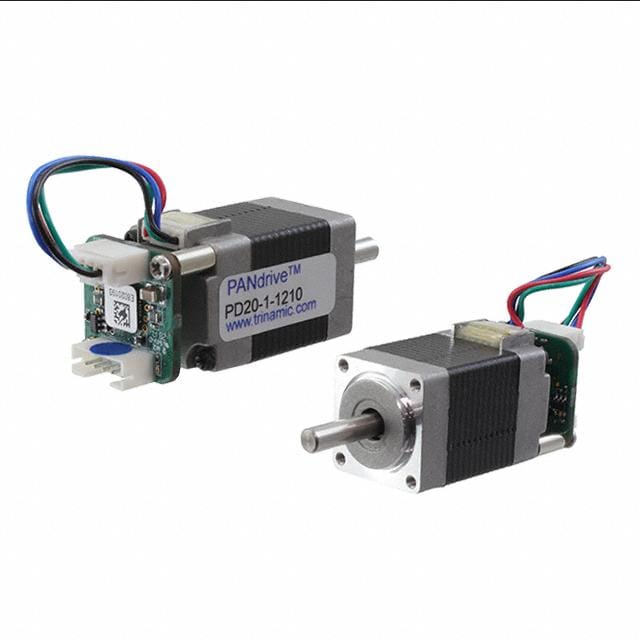

PANDRIVE NEMA08, 24V, 1.75NCM
Product Attributes:
| Series | PANdrive™ |
| Product Status | Active |
| Type | Hybrid |
| Coil Type | Bipolar |
| Voltage - Rated | 24VDC |
| Steps per Revolution | 200.0 |
| Step Angle | 1.8° |
| Accuracy | ±5% |
| Torque - Holding (oz-in / mNm) | 2.48 / 17.5 |
| Size / Dimension | Square - 0.787" x 0.787" (20.00mm x 20.00mm) |
| Diameter - Shaft | 0.157" (4.00mm) |
| Length - Shaft and Bearing | 0.591" (15.00mm) |
| Mounting Hole Spacing | 0.630" (16.00mm) |
| Termination Style | Connector |
| Operating Temperature | -20°C ~ 50°C |
| Coil Resistance | 6.5 Ohms |
| Features | Integrated Controller, Round Shaft |
| Current Rating (Amps) | 600 mA |
| NEMA Frame Size | 8 |
